END 9series Rim
END 9series Rim
Couldn't load pickup availability
The Pro’s choice : Strong, Wide and Race-Ready
Mk.5
Lower Profile for a more comfortable ride.
Thicker bead for better stiffness in corners and overall strength.
Designed wide and strong the Enduro 9 Series rim is for racers looking to carry maximum speed down the trail.
Our hookless bead improves the seal between tyre and rim so you can run softer pressures to maximize grip and square edge rollover.
This rim features our all-new Enduro carbon layup to improve durability and a deep asymmetric profile to boost structural integrity of the system.
The 30mm inner width optimizes profiles for all tyres sized between 2.3 and 2.6. Go for the KOM.
FOAMO's advised for aggressive riders
DECALS pick your own colours

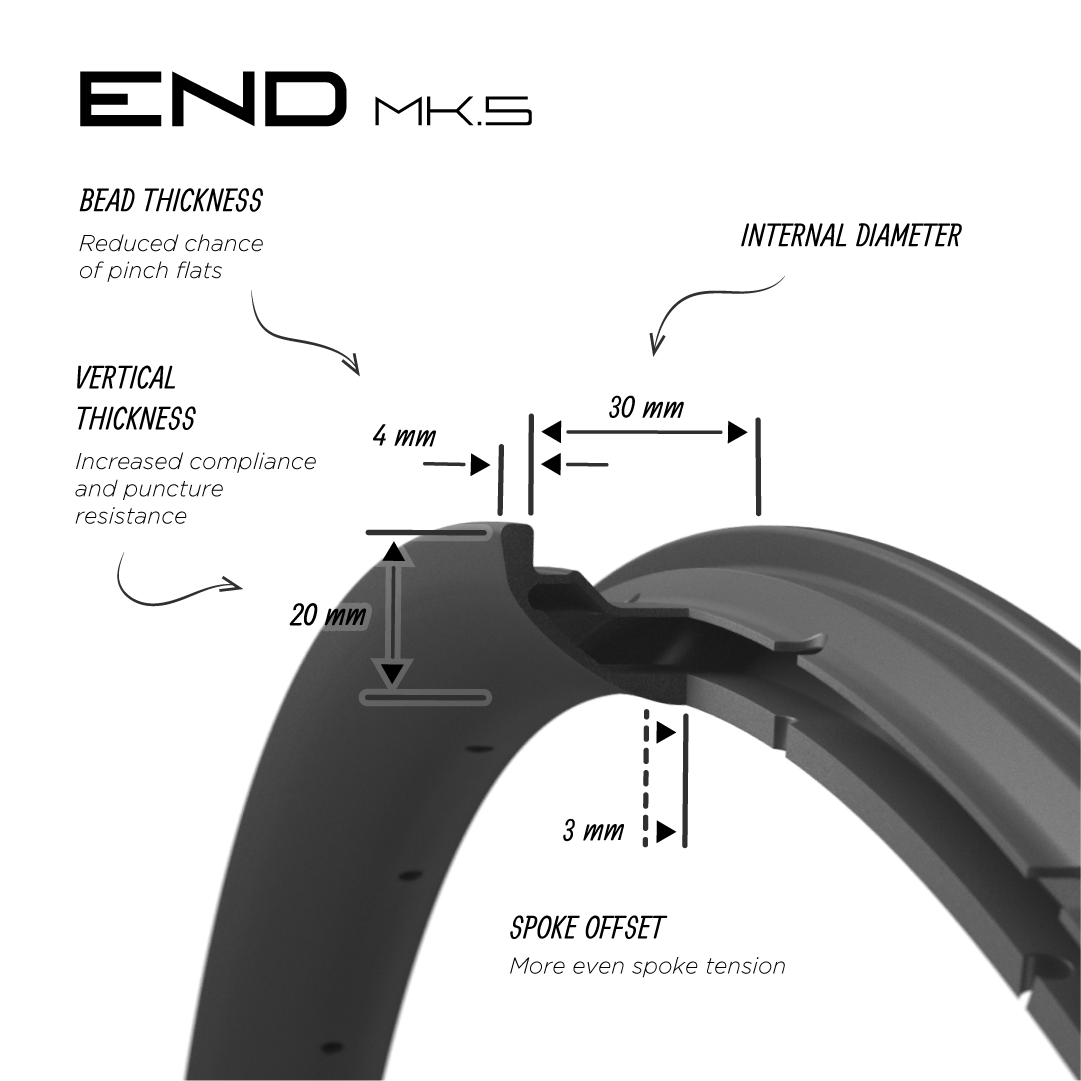

Tech Specs :
| Material | 9series Carbon |
| Size | 29 Inch |
| Application | Trail, Enduro |
| ID | 30mm |
| Bead | Hookless |
| Wall Thickness | 4mm |
| Hole Count | 28h / 32h |
| Depth | 20mm |
| Asymmetric Profile | Front Long side to Disc |
| Asymmetric Profile | Rear Long side to Drive |
| ERD | 600mm |
| Spoke Hole Offset | 3mm |
| Weight | 445 grams |
| Weight Limit | 130 kg |
| Max Spoke Tension | 130 kgf |
| Crash Replacement | 2 Years |
| Warranty | Lifetime |
Due to our new lower profile more compliant rims it is recommended to double check spoke tension after a tire has been fitted.
There fit of various tires on the market vary drastically which has an effect on the rim and therefore spoke tension.
We recommend using Rear Drive, 16mm, Brass nipples for durability, easy of use and overall best results.
