Hub - Front

  • Sale
  • Regular price R 1,975.00


Unique design so that the end-caps stay in place when removing the front wheel.

Angled flanges for better spoke angles.

 Available Sizes Std: 100mm x 15mm
Boost: 110mm x 15mm
Hole Count 28mm
Disc Type 6 Bolt
Material Aluminium
Bearings Std: MR17287
Boost: 6804
Weight Std: 152g (100x15)
Boost: 192g (110x15)



STD 100mm x 15mm

BOOST 110mm x15mm

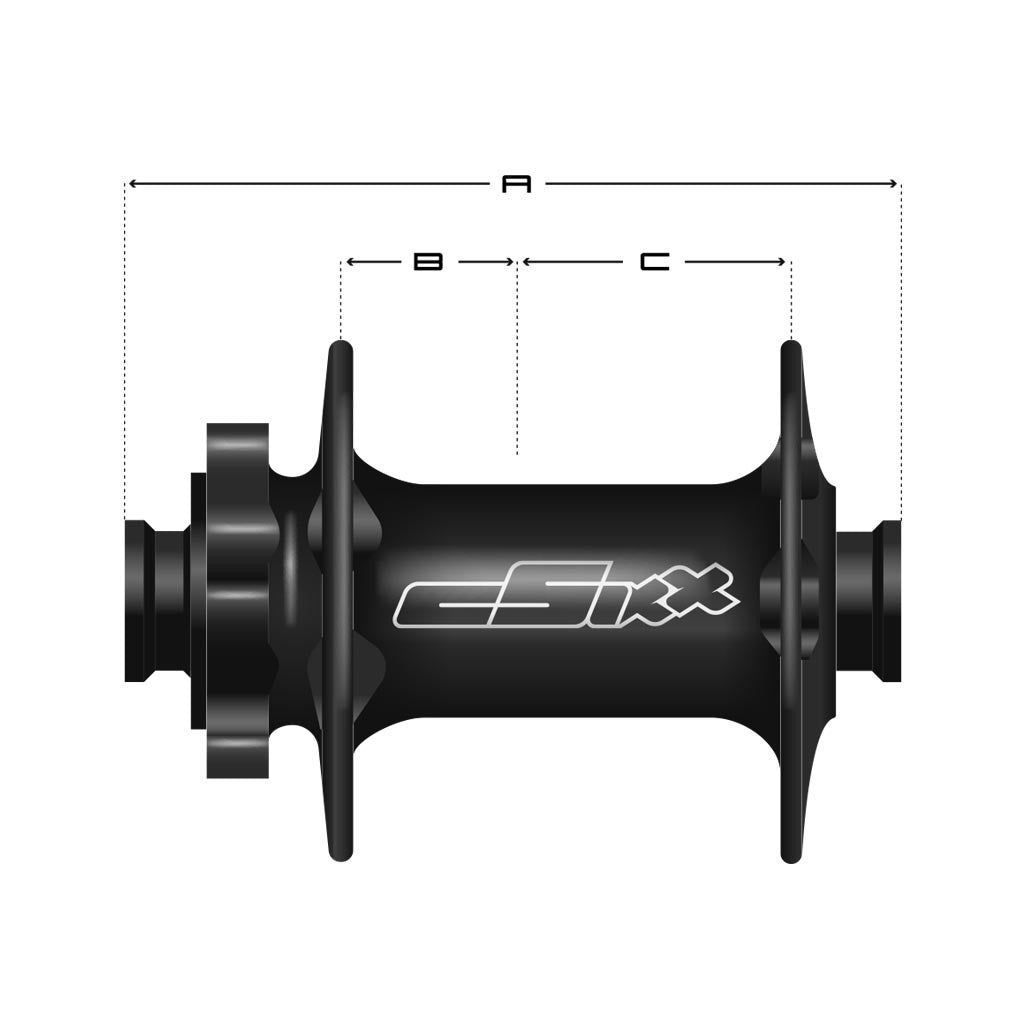

A

100mm

110mm

B (Left flange distance)

22.5mm

26.5mm

C (Right Flange Distance)

35.5mmm

37mm

Spoke hole Ø

2.6mm

2.6mm

Pitch circle diameter left

58mm

58mm

Pitch circle diameter right

58mm

58mm
