Hub - Rear

  • Sale
  • Regular price R 2,550.00


3 Pawls with 30 points of engagement.

12° engagement angle.

Angled flanges for better spoke angles.

 Available Sizes Std: 142mm x 12mm
Boost: 148mm x 12mm
Hole Count 28mm
Disc Type 6 Bolt
Material Aluminium
Bearings 6902
Freewheels SRAM XD
Shimano 10/11 speed
Weight 274g (142 x 12)





Std. 142mm x 12mm

BOOST 148mm x 12mm

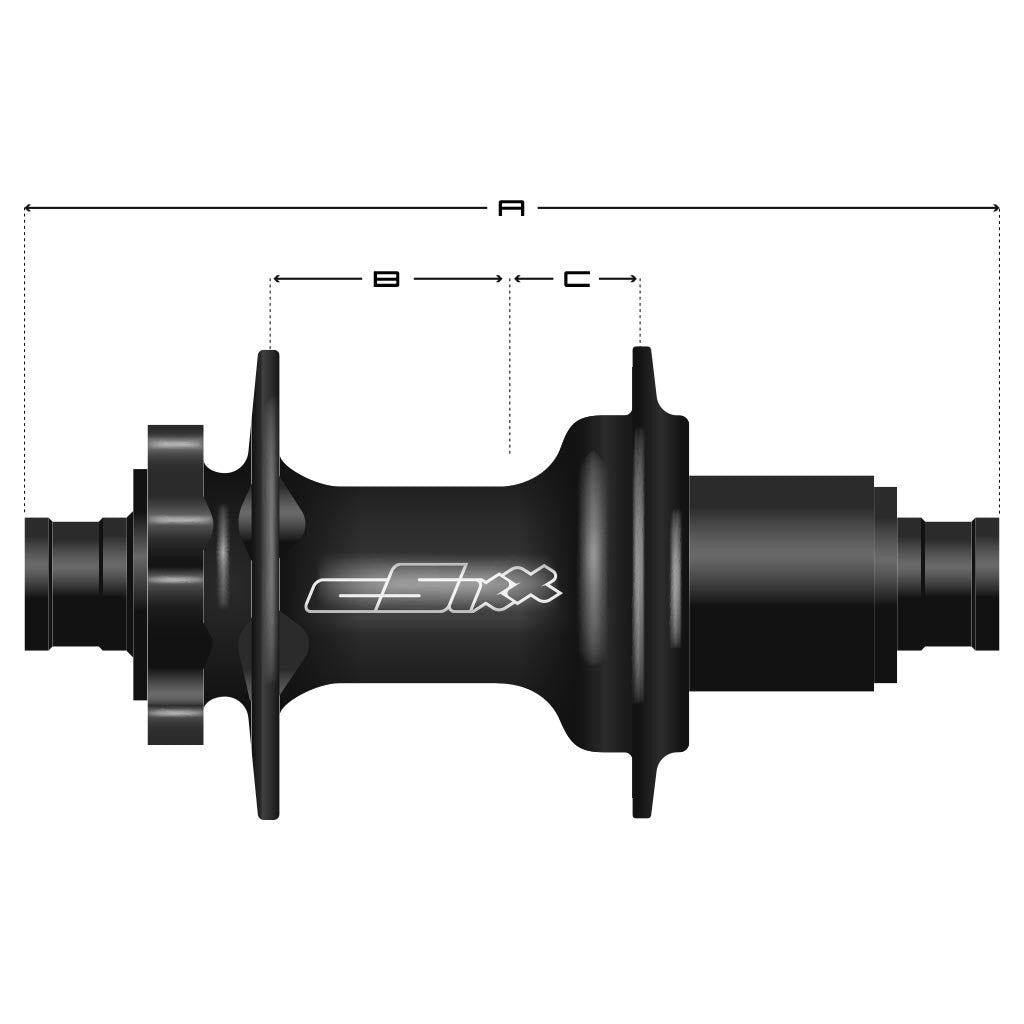

A

142mm

148 mm

B (Left flange distance)

34.5mm

36.5mm

C (Right Flange Distance)

20.5mmm

24.5mm

Spoke hole Ø

2.6mm

2.6mm

Pitch circle diameter left

58mm

58mm

Pitch circle diameter right

58mm

58mm
